Spring washers are small washers or disks made of metal that form irregular shapes. Because of these irregular shapes, when they are loaded they can act like a spring to deflect and provide a preload between the two surfaces. There are many different types of spring washers available including Belleville washers, curved washers, and conical washers.
At Werkme Spring, we can manufacture an endless variety of different types of springs in many sizes and styles. This includes the custom engineering and manufacturing of products to meet our customer’s specific requirements. To learn more about spring washers or to submit your specifications for a custom order, please contact us about our spring manufacturing services online or by calling us at (636) 677-5500.
More About Spring Washers
Spring washers can be used alone or in stacks in order to achieve the desired load and travel. The main advantage of these springs is that they are able to generate high force in a very short spring length and with minimal movement when compressed. These parts provide an easy way to compensate for differences in stacked tolerances, also known as “end play”. They also provide a low-cost and efficient solution for dealing with a variety of requirements and complications. This includes when:
- Compensating spring force
- Preloading a bearing
- Applying constant tension on fasteners
- Absorbing intermittent shocks from starting and stopping
Learn more about the applications and uses of custom spring washers.
Common Types of These Springs:
Belleville Spring Washers

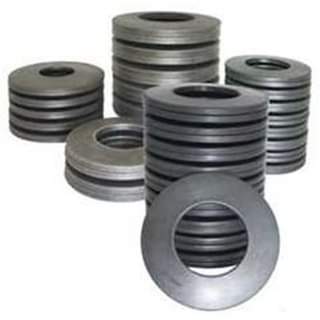

Belleville spring washers are one of the most common types available. These are conical-shaped washers that can be used alone or stacked into columns. They can be stacked into columns in a variety of ways or patterns in order to increase the load or deflection. This includes stacked in:
- Parallel Form: This is when all washers are stacked facing the same way. It will increase the load with the addition of each washer.
- Series Form: This is when all washers are stacked opposite each other. It will increase deflection with the addition of each washer.
- Series-Parallel Form: This is a combination of both series and parallel stacking methods.
Learn More About Spring Washers
To learn more or to request a quote for custom spring manufacturing, please contact us online or by phone. As a leading spring washer manufacturer in St. Louis, MO, we can help you develop solutions and engineer the custom products needed to satisfy your needs for customers nationwide.
